Techniq's Stork
Transport Support Vehicles
TECHNIQ INTERNATIONAL

Stork can be a mobile clinic that carries doctors or paramedics to the injured or sick. This is ideal for health care professionals working in remote areas or for patients, who do not have quick access to hospitals. Stork can be configured according to the client’s specifications.

  • Ergonomically designed interiors with optimal lighting (roof lights, handheld light etc.)

  • Mulitple control for heater or A/C systems as per treatment/patient care requirements (with prewiring for inverter)

  • Dual protection with inside/outside locking latches for the double doors

  • Two row of LED / Halogen fluroscent, dome lighting in interior ceiling with dimmer

  • Advanced control with separate front and rear OEM console for power distribution to emergency lights points and sirens

  • Hand-held spotlight with momentary switch, hard wired, to driver's seat base with alrenate option of mounting location

  • 200-watt electronic siren with Microphone located in front console and 2 nos. of 100-watt speaker mounted under front bumper

  • Modular equipment paneling

  • High end Body graphics designing and painting of ambulance (including frosted Windows)

Chassis / Car
Toyota Hiace, Nissan , GMC Savana etc.
Drive System
4x2 or 4x4
Fuel type
Diesel / Gasoline
Cab Style
Standard Cab
Transmission
Automatic / Manual
Wheelbase
Standard or Extended Wheelbase
Compartment Doors
  • Side Entry Door
  • Rear Entry Door
  • Electric door locks on all doors with remote switch
Warning system

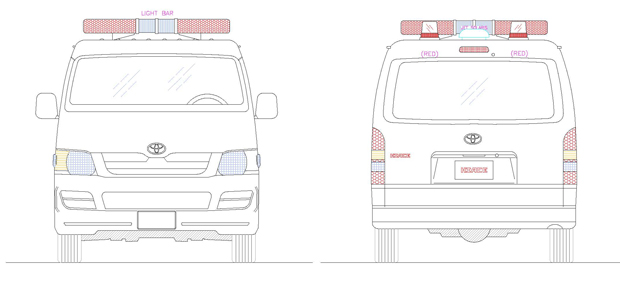

  • Front light bar
  • 2 x beacon lights at rear
  • 2 turn lights mounted on intermediate side of body
  • Flashers
  • 2 Grill Lights
  • Intersection Lights
  • Warning Lights
  • Load/Backup Lights
  • Siren and Siren Speakers
Oxygen System
  • M Size Oxygen Cylinder with regulator
  • Oxygen Outlets including flow meter and humidifier in action area and over the squad bench
Standard Equipments
Medical
  • Roll-in Cot main Stretcher (Manual or Auto loading)
  • Foldable secondary stretcher
  • Cervical Collar different size (set of 6)
  • Head Immobilizer
  • First Aid Kit
Others
  • Technician chair with arm rest, 3-point seat belt 360 degree rotatable and retractable
  • Squad Bench
  • IV holders and hooks - Dual-bottle, swing down style
  • Assist Rail Grab Handles
  • Left side CPR seat or full wall cabinetry
  • Power Distribution and Control Centre
  • Fire extinguishers with holder
  • Jumbo blower exhaust fan
Optional Medical Equipment
  • Portable Suction Unit
  • Scoop Stretcher
  • Spine Board with restraint set
  • Traction Devices
  • Extrication Devices
  • Stair Chair Stretcher
  • Dual Head Stethoscope
  • Wall-Mounted Sphygmomanometer
  • Portable O2 Cylinder – D Size with regulator
  • Resuscitator Adult with Overpressure Valve







  1. Ceiling:
    2. Made of ABS sheet with foam insulation.

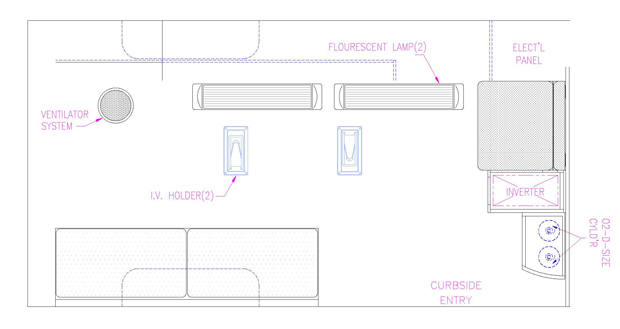

  2. Interior Lights:
    3. 2 units Twin tube fluorescent lamps 16 watts recessed mounting on the ceiling.

  3. Hand Rail:
    4. Made of 1” stainless tube mounted on the ceiling.

  4. IV Holder:
    5. Foldable IV Holder mounted on the ceiling. One (1) over the main patient area and one (1) over the Squad Bench.

  5. Air Condition:
    6. Additional A/C evaporator for the patient area.

  6. Flooring:
    7. Made of marine plywood covered with heavy duty vinyl flooring, 5cm. rolled up on the sides with aluminum trim.

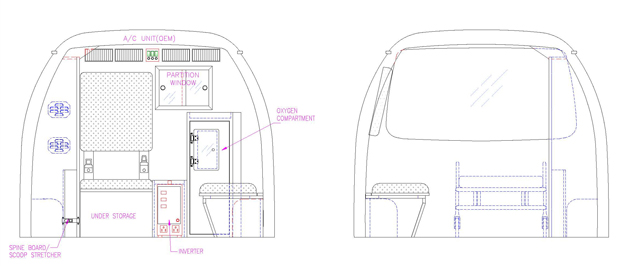

  7. Partition wall:
    8. Made of ABS sheet with foam insulation.

  8. Cabinetry:
    9. Made of Aluminum bended sheet with aluminum profile for the clear acrylic sheet sliding cover with continues handle Powder coat finished.

  9. Cabinets:
    10. With aluminum profile sliding frame and with 5mm. transparent solar bronze polycarbonate with edge handle.

  10. Action Area:
    11. Placed along with the cabinetry, on the right side of the Patient Stretcher.

  11. Control Switches:
    12. Placed on the Action Area and Consul Box at the Driver’s Cabin

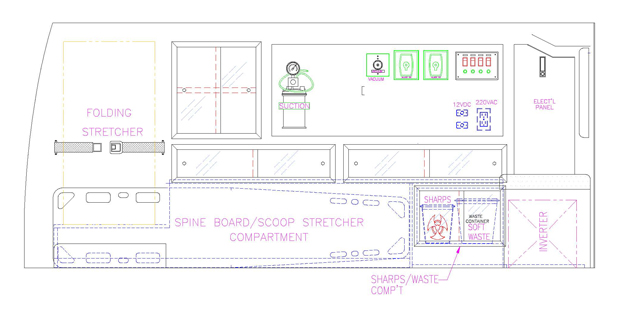

  12. Folding Stretcher Compartment:
    13. Placed along with the cabinetry, on the rear entrance portion of the vehicle with belts to secure the folding stretcher

  13. Squad Bench:
    14. Made of Aluminum sheet fabricated with upholstery and backrest with safety belts underneath is a compartment tools and medical equipments. With gas prop to hold the top cover. Powder coat finished.
